Steam Boiler Tube and Tube Sheet Renewal

Removal of boiler tubes, cutting out damaged tube sheet sections, fabrication and fitting of a new sheet, and expansion of the tube ends.

The boiler is opened and the work area prepared. Existing tubes are removed and the damaged section of the sheet is cut out. A new sheet is dimensioned and fabricated with the hole pattern matched to the existing equipment. The sheet is positioned and welded into the shell, new tubes are fitted and their ends expanded. Much of this work is carried out on board in confined spaces.

Tube sheetBoiler tubeExpansionOn boardConfined space

Scope

Sequence of work

Opening the boiler and preparing the work area
Removal of existing tubes
Cutting out damaged tube sheet sections
Dimensioning and fabrication of the new sheet
Hole pattern matched to the existing equipment
Positioning and welding the sheet into the shell
Installation of new tubes
Expansion of the tube ends
Dimensional and tightness checks

Where the work is done

On board, in the machinery space or on deck
In the yard, while the vessel is docked or alongside
In the workshop in Tuzla, when the equipment is removed and brought in
Across Türkiye and, where required, in foreign ports

From this work

The photographs were taken in the field and in the workshop. The captions describe only what is visible.

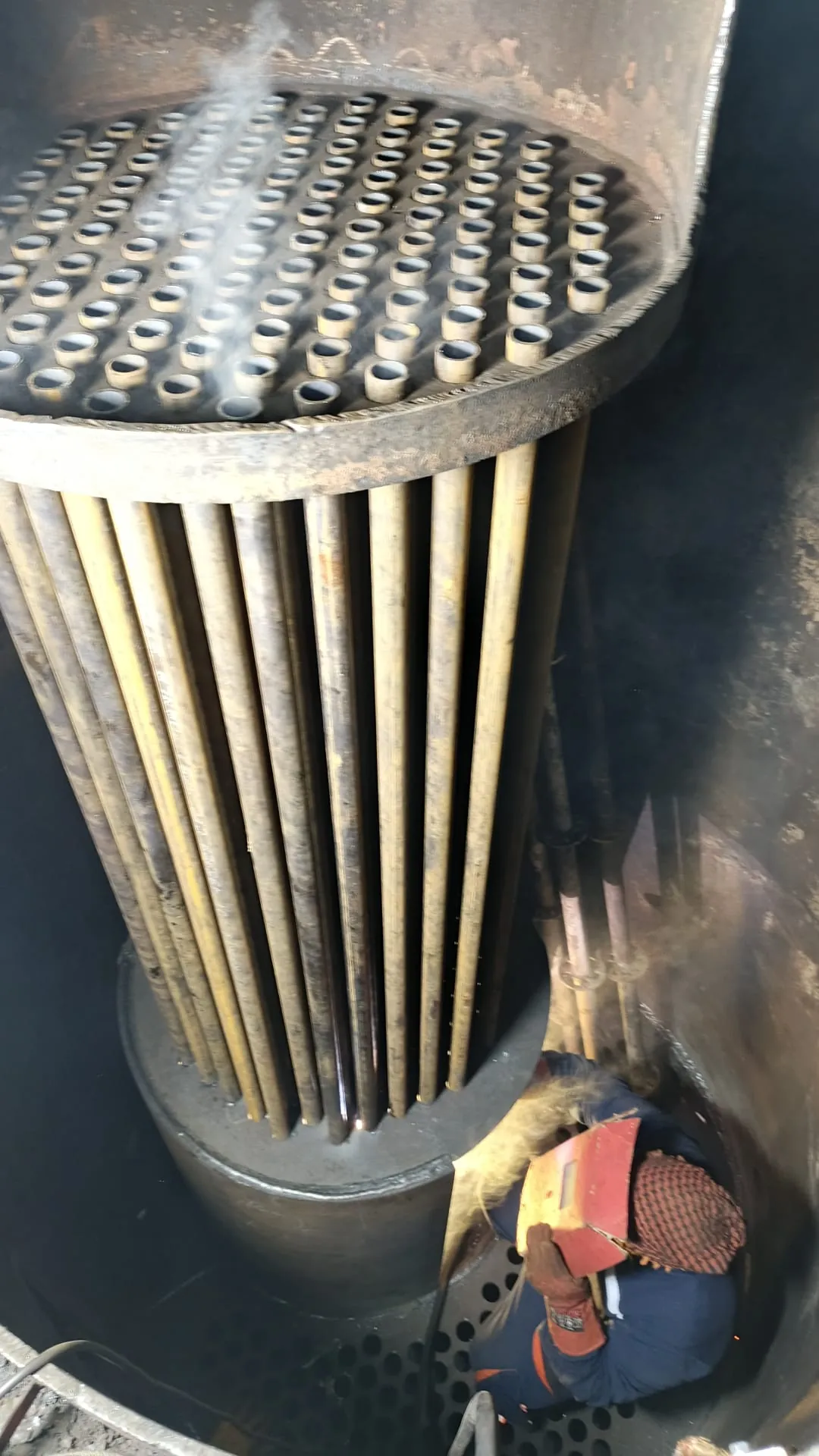

Work on the tube sheet, seen from inside the boiler

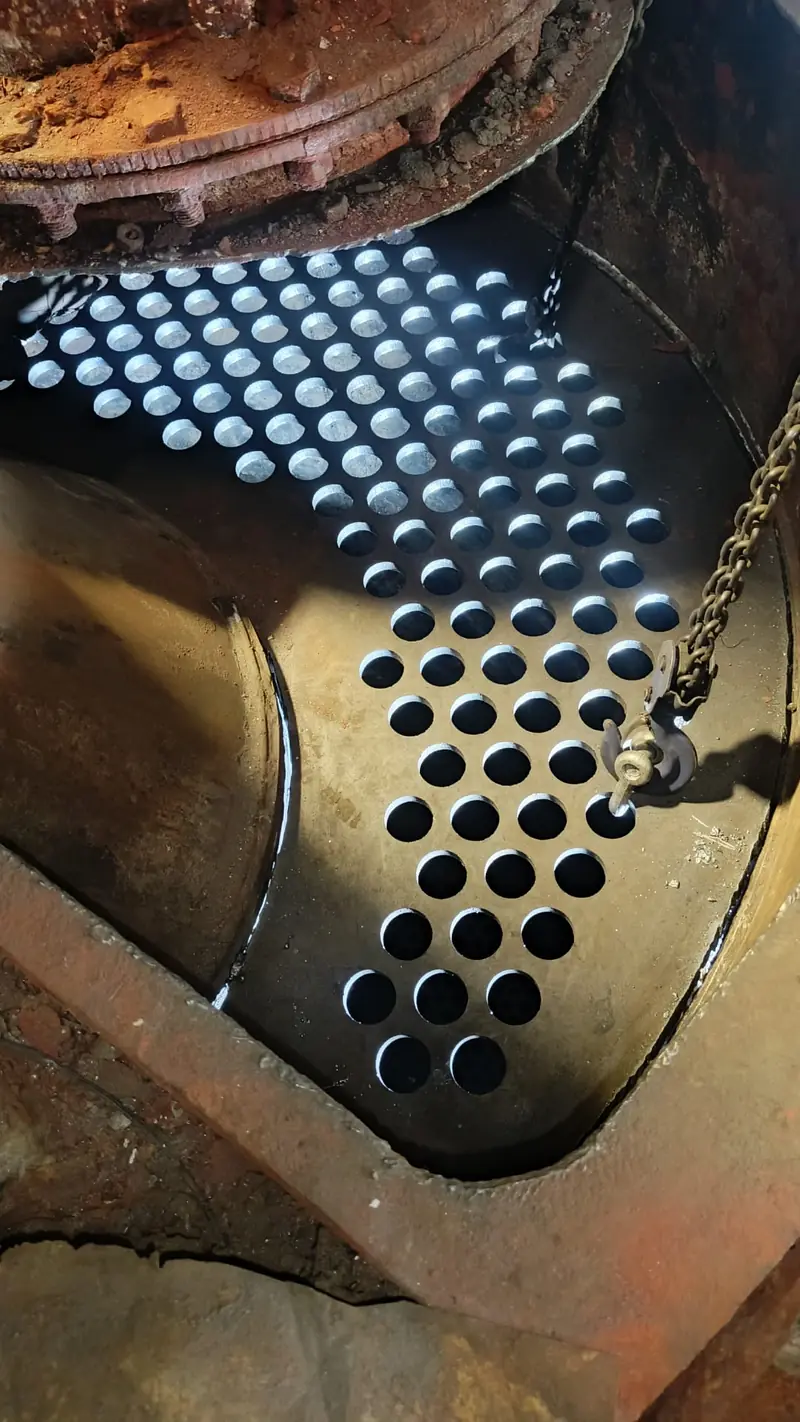

New sheet section in place with the tube holes open

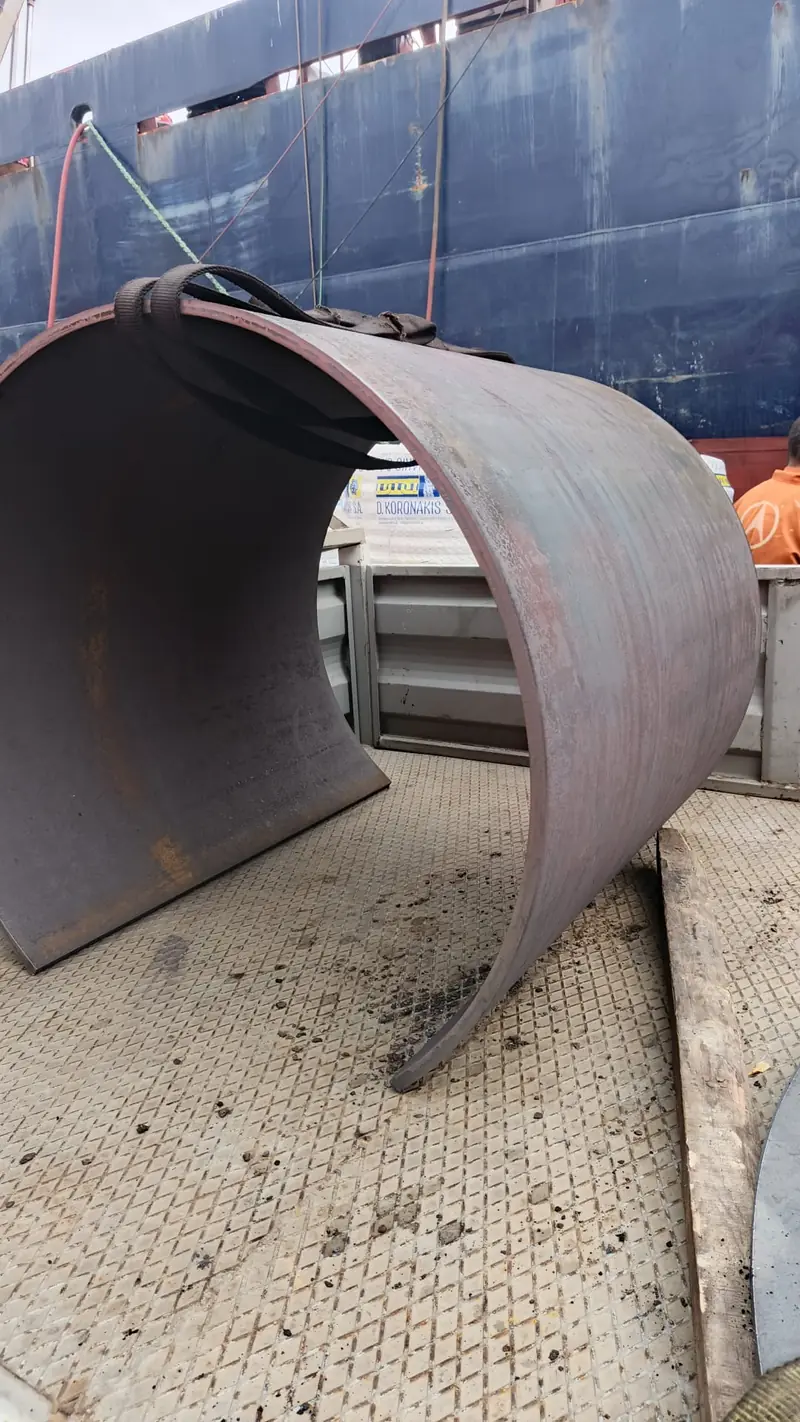

Fabricated sheet sections before transport to the vessel

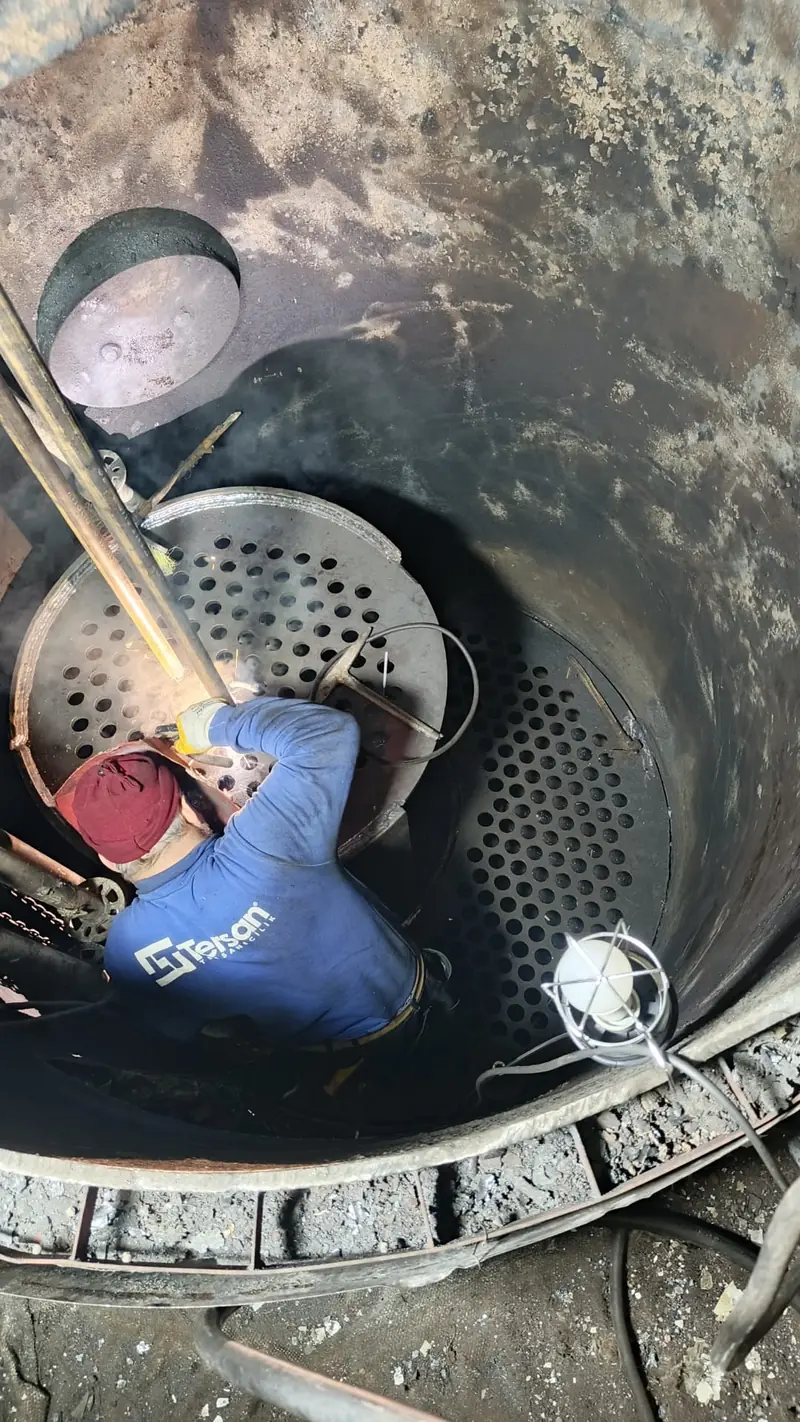

Working in the confined space inside the boiler
